SR385

Mini Skid Steer

The SR385 Mini Skid Steer delivers compact power, quiet operation, and zero-emission performance for construction, landscaping, agriculture, and industrial job sites. With a 23 kWh LFP battery and up to 5–6 hours of working time, it is built for demanding daily use without fuel costs or engine maintenance.

849 lbs
Rated operating capacity
3417 lbs
Operating weight
23 kWh
LFP battery
5-6 hrs
Working time

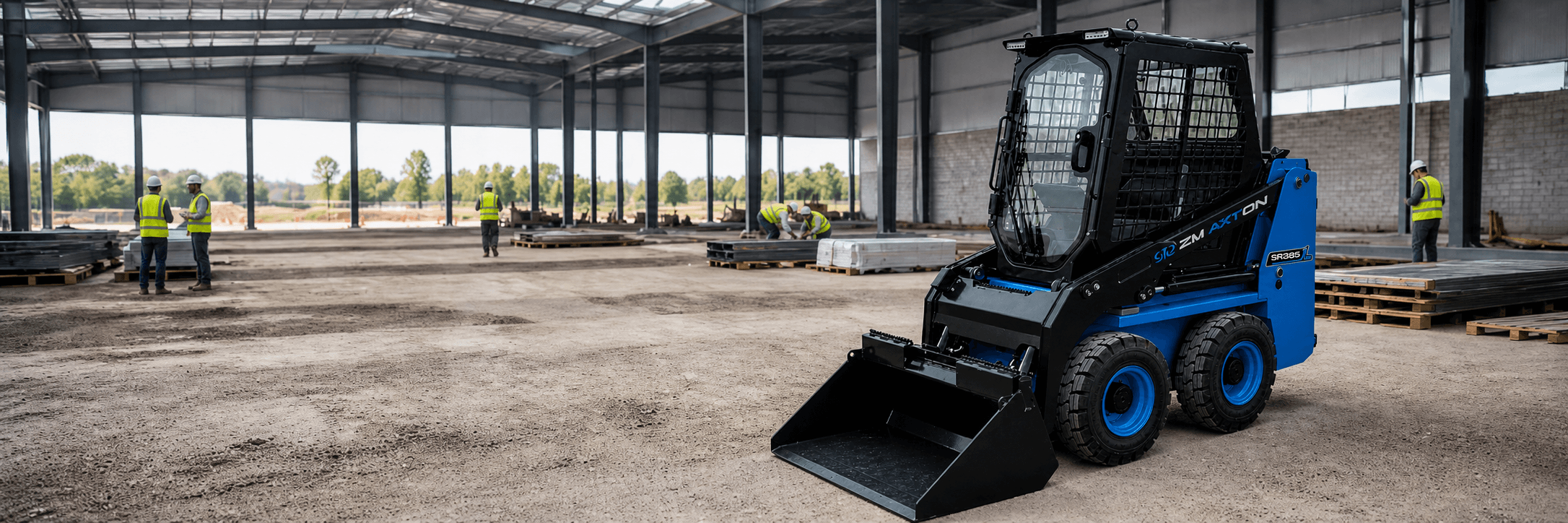

SR385 electric skid steer loader on a job site

OVERVIEW

The SR385 is designed for contractors, property managers, farms, warehouses, and municipalities that need strong lifting performance in a compact electric machine. Built for demanding work environments, the SR385 gives operators the power and control needed to move materials, handle jobsite cleanup, support maintenance work, and complete daily tasks with greater efficiency. Its compact size makes it especially useful in areas where larger machines are difficult to operate, such as narrow pathways, indoor facilities, residential developments, tight storage yards, and busy urban jobsites.

One of the key advantages of the SR385 is its electric LFP battery system. This battery technology is known for stable performance, long service life, and dependable operation. Because the machine is electric, it produces no direct exhaust emissions during operation, making it a strong choice for indoor construction, warehouses, factories, agricultural buildings, and other enclosed or sensitive work areas. This helps crews work in locations where diesel equipment may not be practical or allowed.

The SR385 also offers low-noise operation, which is important for jobsites located near homes, schools, hospitals, office buildings, and public spaces. Lower operating noise can help reduce disruption while still allowing the machine to complete tough tasks. For municipalities and property managers, this makes the SR385 a practical option for maintenance work, landscaping, park development, facility repairs, and other projects where keeping noise levels under control is important.

Reduced maintenance is another major benefit. With fewer moving parts than traditional fuel-powered machines, the SR385 can help lower routine service needs and reduce downtime. There is no engine oil to change, no fuel system to maintain, and fewer wear-related service items compared to many conventional machines. This can help businesses save time, control operating costs, and keep equipment available when it is needed most.

The SR385 is also easy to integrate into many different industries. Contractors can use it for construction support, site preparation, and material handling. Farms can use it around barns, greenhouses, storage areas, and livestock facilities. Warehouses and industrial facilities can use it for moving supplies, supporting renovation work, and operating in spaces where clean, quiet equipment is preferred. Municipal teams can use it for public works, road maintenance support, landscaping, waste management, and utility projects.

Overall, the SR385 delivers the strength, flexibility, and clean operation needed for modern worksites. It combines compact design, electric power, low noise, reduced maintenance, and dependable lifting performance in one practical machine. For organizations looking to improve productivity while reducing emissions, noise, and long-term maintenance demands, the SR385 is a smart solution for a wide range of indoor and outdoor applications.

Zero emissions
🔊Low noise
High efficiency
Easy maintenance

SPECIFICATIONS

Overall Performance

Operating weight3,417 lbs
Tipping load1,698 lbs
Rated working load848 lb
Maximum breakout force2,068 lbf
Maximum traction force2,833 lbf
Maximum travel speed6.21 mph

Battery

Battery typeLFP battery
Battery capacity23 kWh
Battery voltage80V ±5%
Working hours5–6 hours

Hydraulic Motor

Quantity1
TypePermanent magnet synchronous motor
Single rated output power9 kW

Traveling Motor

Quantity4
TypePermanent magnet synchronous motor
Single rated output power2 kW

On-board Charging

Rated power6 kW
Voltage90–265V
Charging timeApprox. 2.9 hours from 15% to 90% on 220V

Hydraulic System

PumpGear pump
Rated flow10 gal/min
Control valveThird function multiway valve
System pressure275 psi
Total cycle time<10 seconds

Brake System

Service brakeElectrodynamic braking
Parking brakeSpring applied / hydraulic release
Emergency brakeEmergency stop button inside the cab

Dimensions

Maximum operating height123.6 in
Height to hinge pin94.8 in
Height from ground to cab73 in
Maximum bucket leveling height89.6 in
Overall length without bucket70.6 in
Overall length with bucket100.2 in
Dumping angle40°
Maximum dumping height at max dump angle74.3 in
Rollback angle on ground18.2°
Dumping reach at max dump angle32 in
Rack angle at full lift97.5°
Departure angle22°
Ground clearance5.3 in
Front turning radius without bucket30.7 in
Front turning radius with bucket59.1 in
Rear turning radius44.9 in
Rear length28.6 in
Wheel track29.7 in
Width over tires35.3 in
Width over bucket43.8 in
Wheelbase28.9 in

BUILT FOR ANY APPLICATION

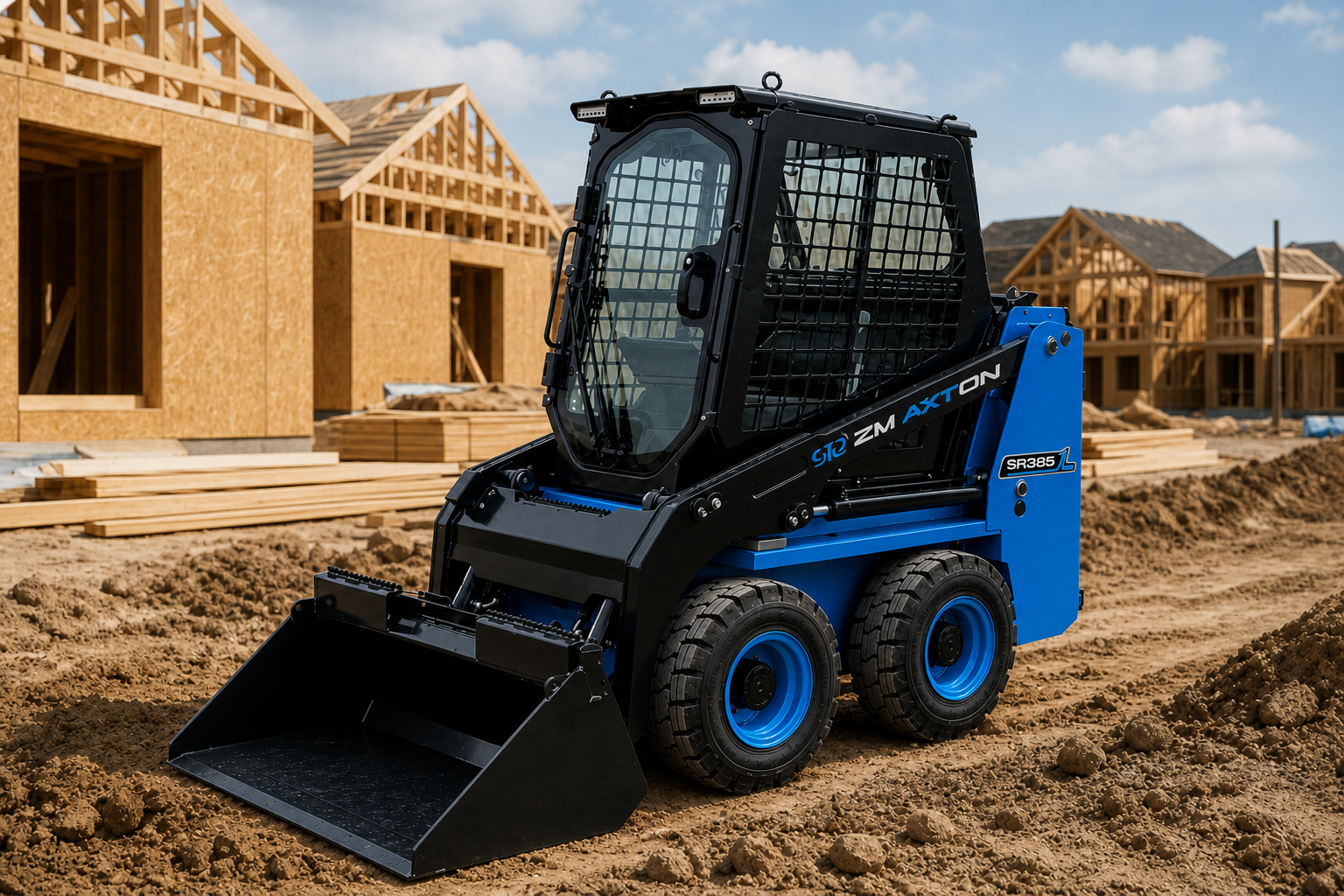

SR385 at construction sitesConstruction Sites

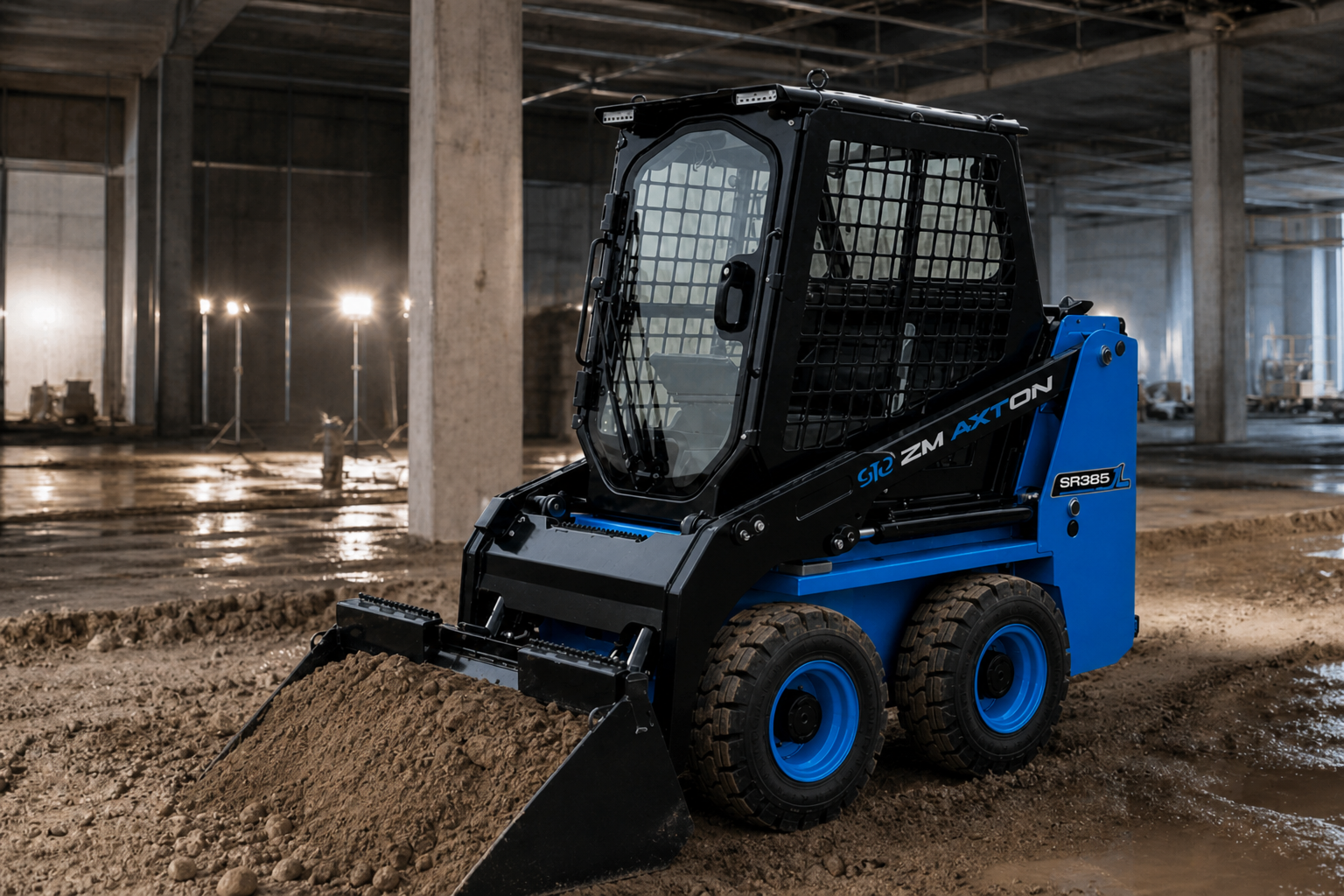

SR385 in urban constructionUrban Construction

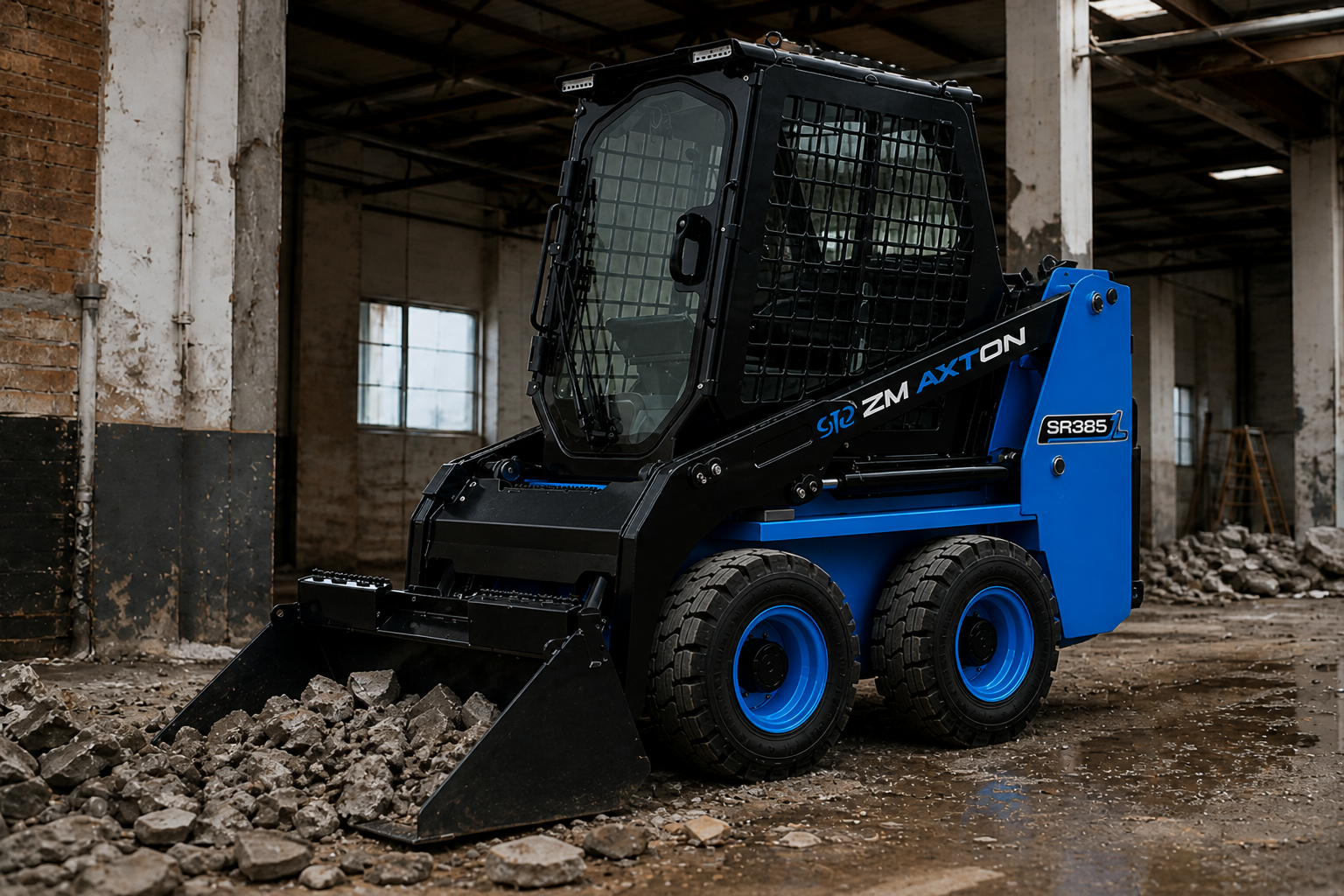

SR385 in residential developmentResidential Development

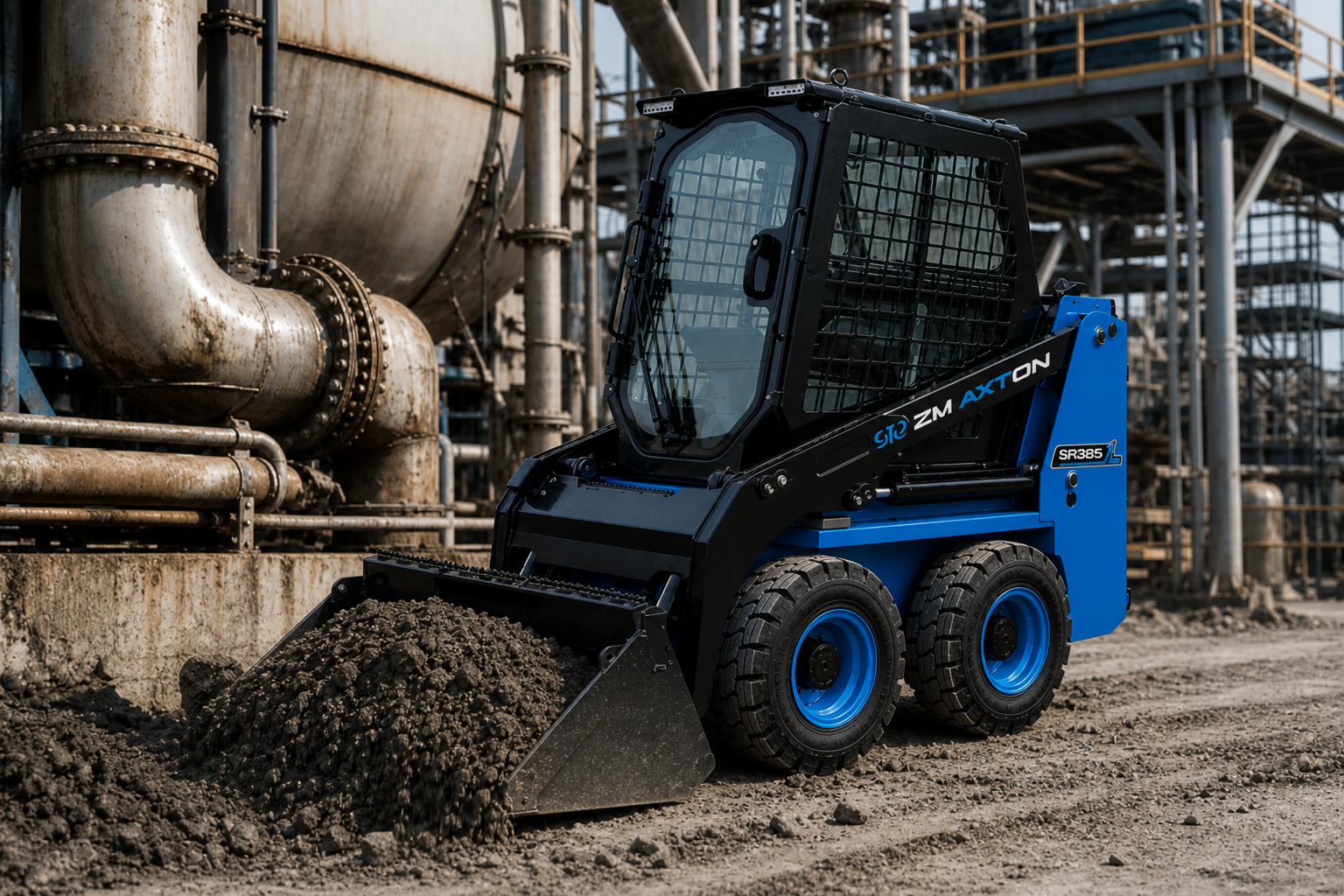

SR385 for indoor constructionIndoor Construction

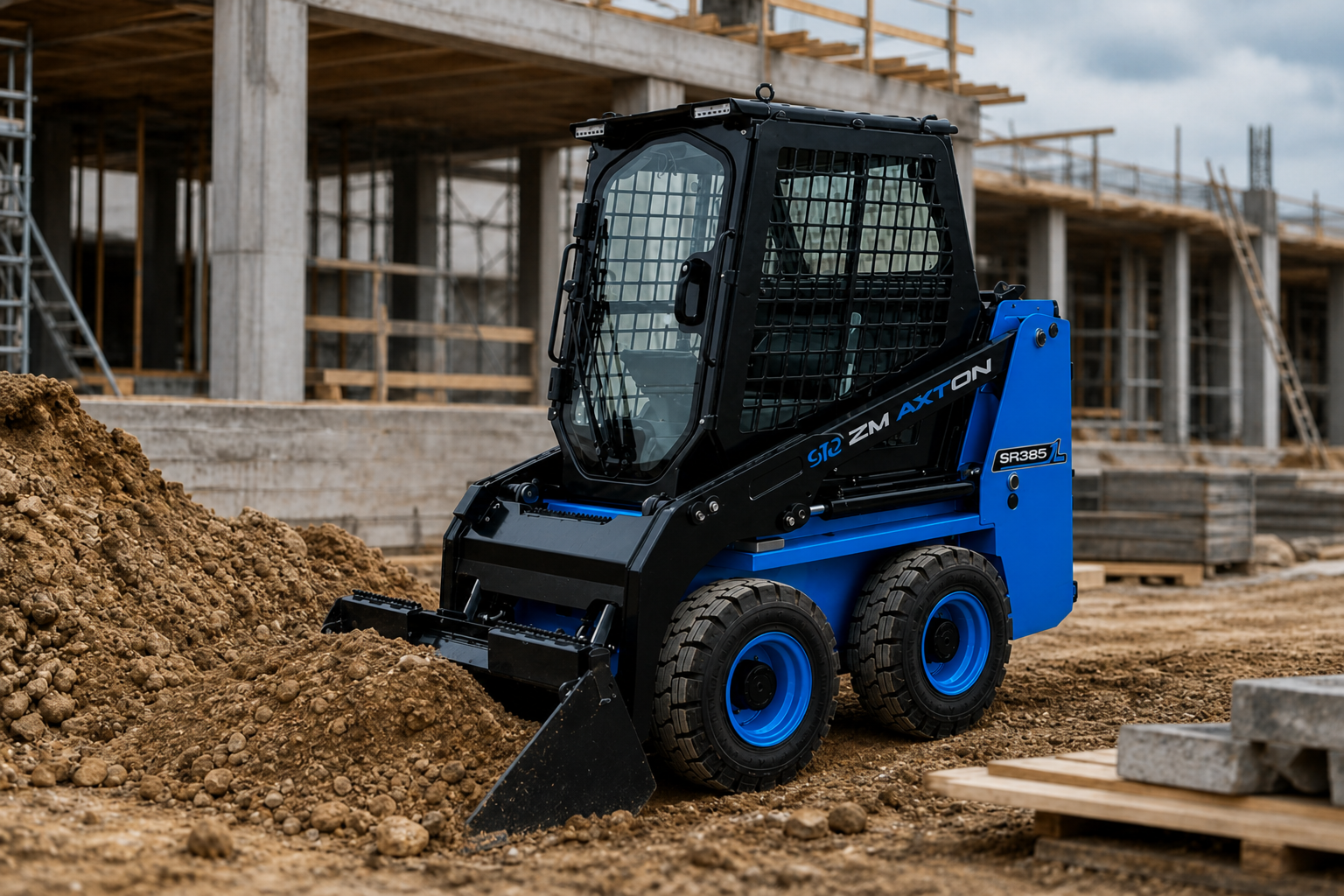

SR385 in warehouse operationsWarehouse Operations
SR385 in industrial facilitiesIndustrial Facilities

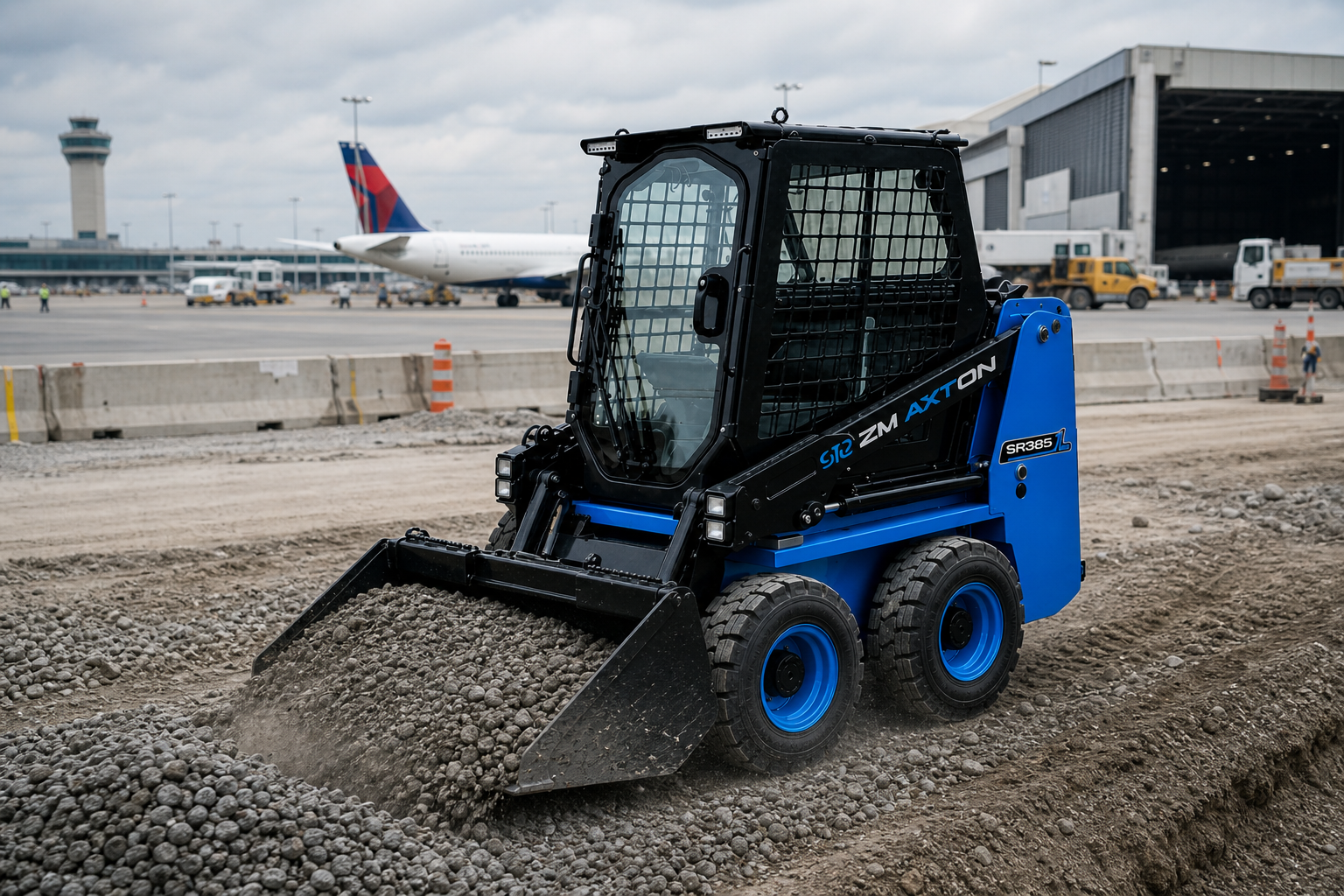

SR385 in agricultureAgriculture

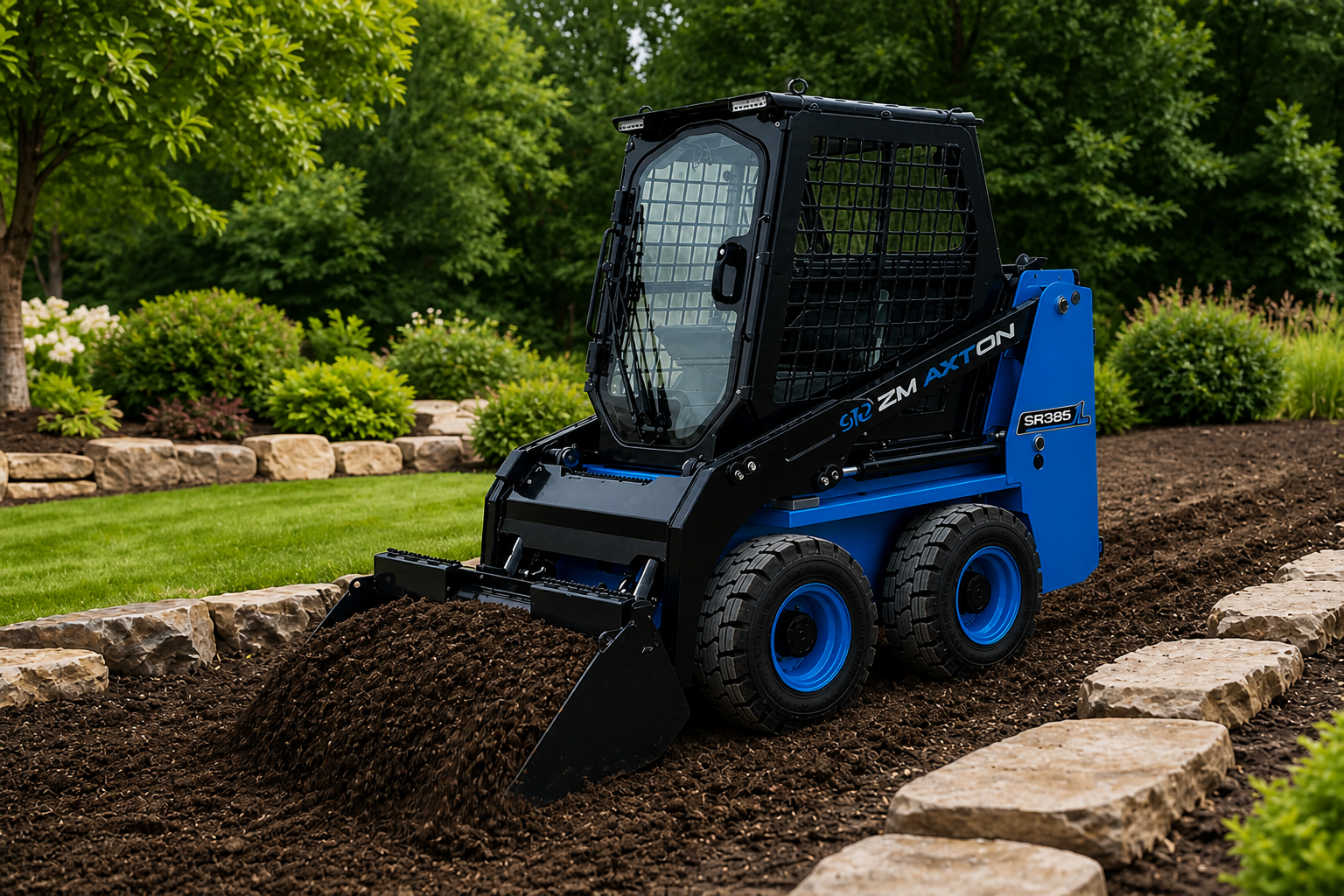

SR385 in landscapingLandscaping

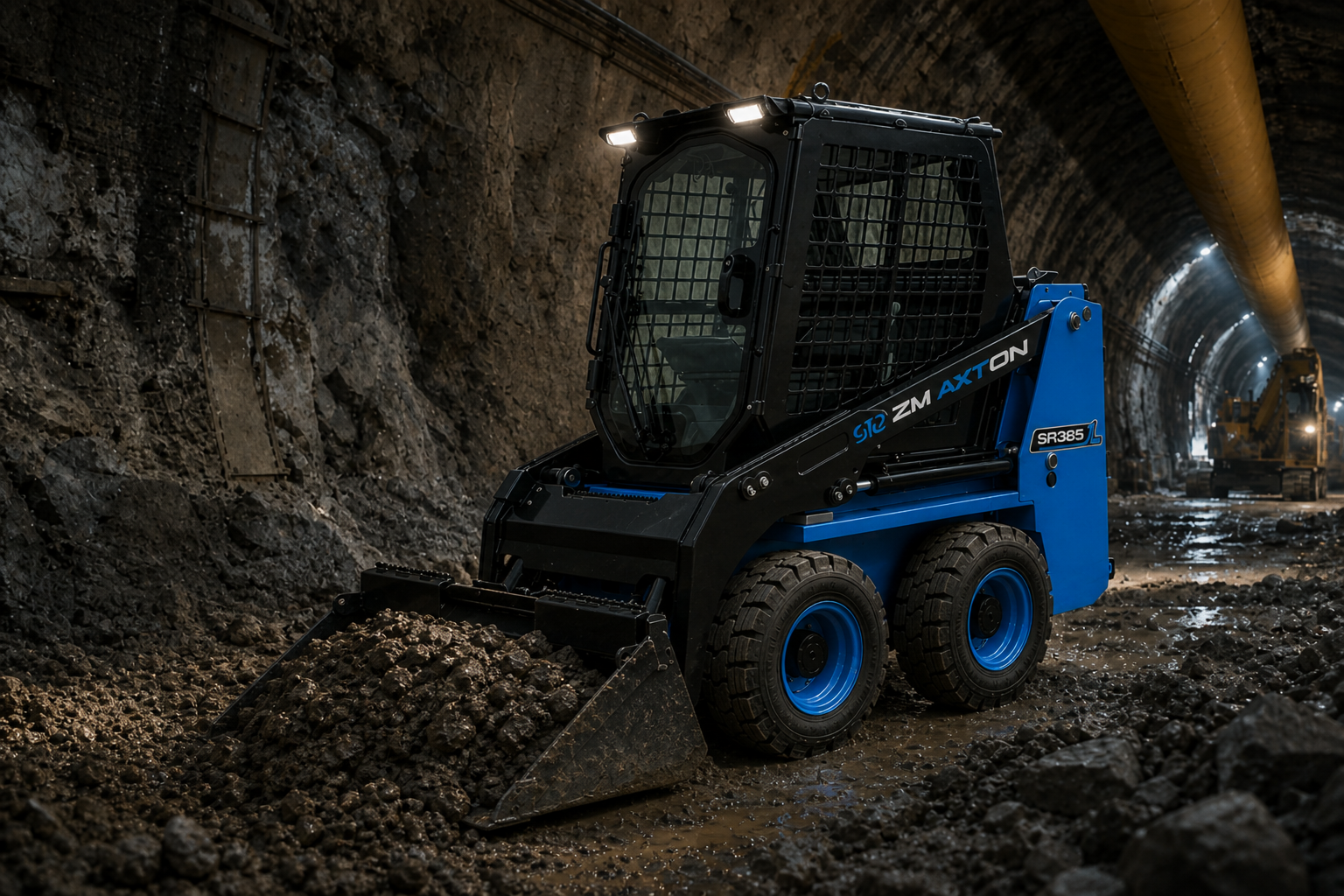

SR385 in municipal projectsMunicipal Projects

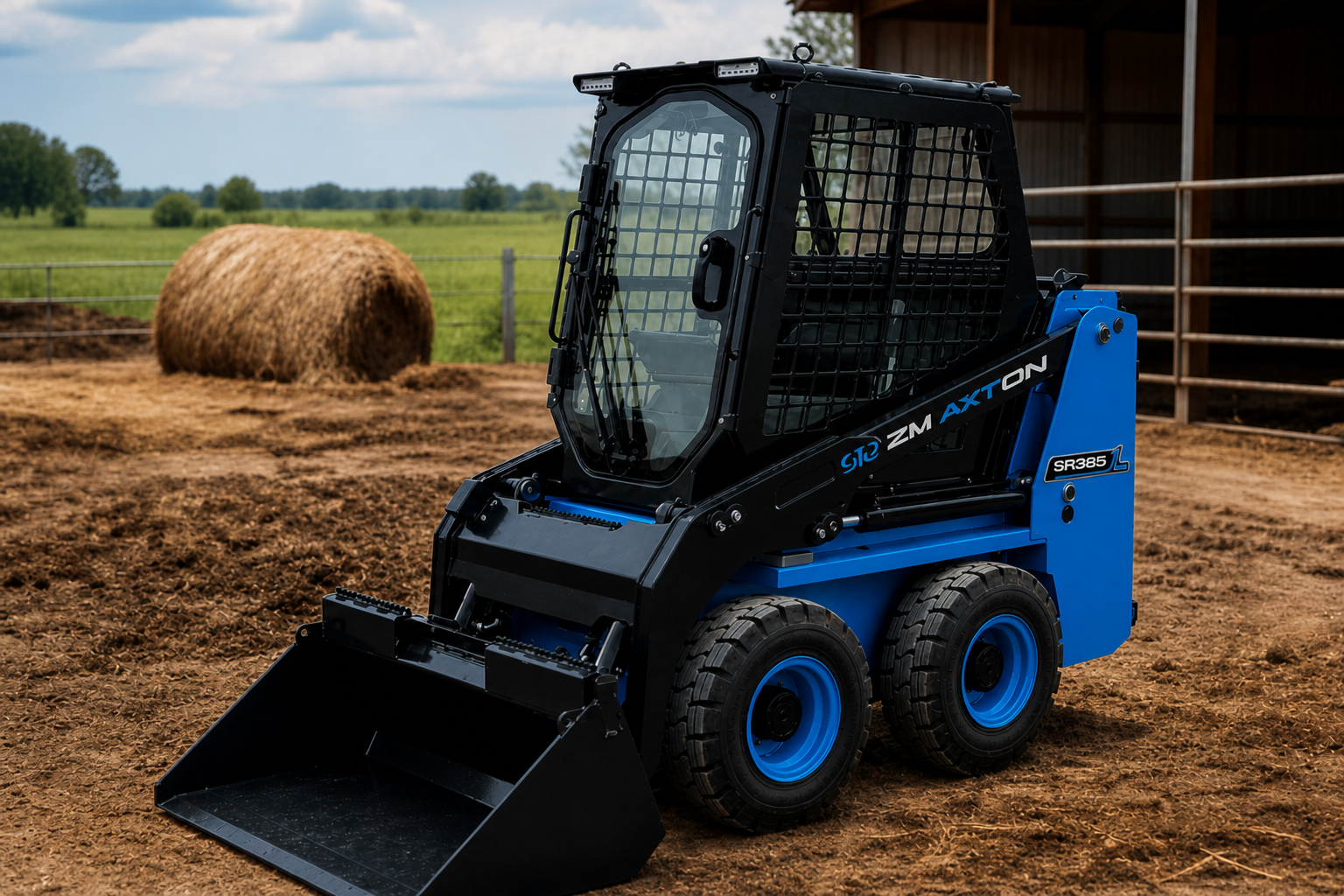

SR385 in shipping ports projectsShipping Ports Projects

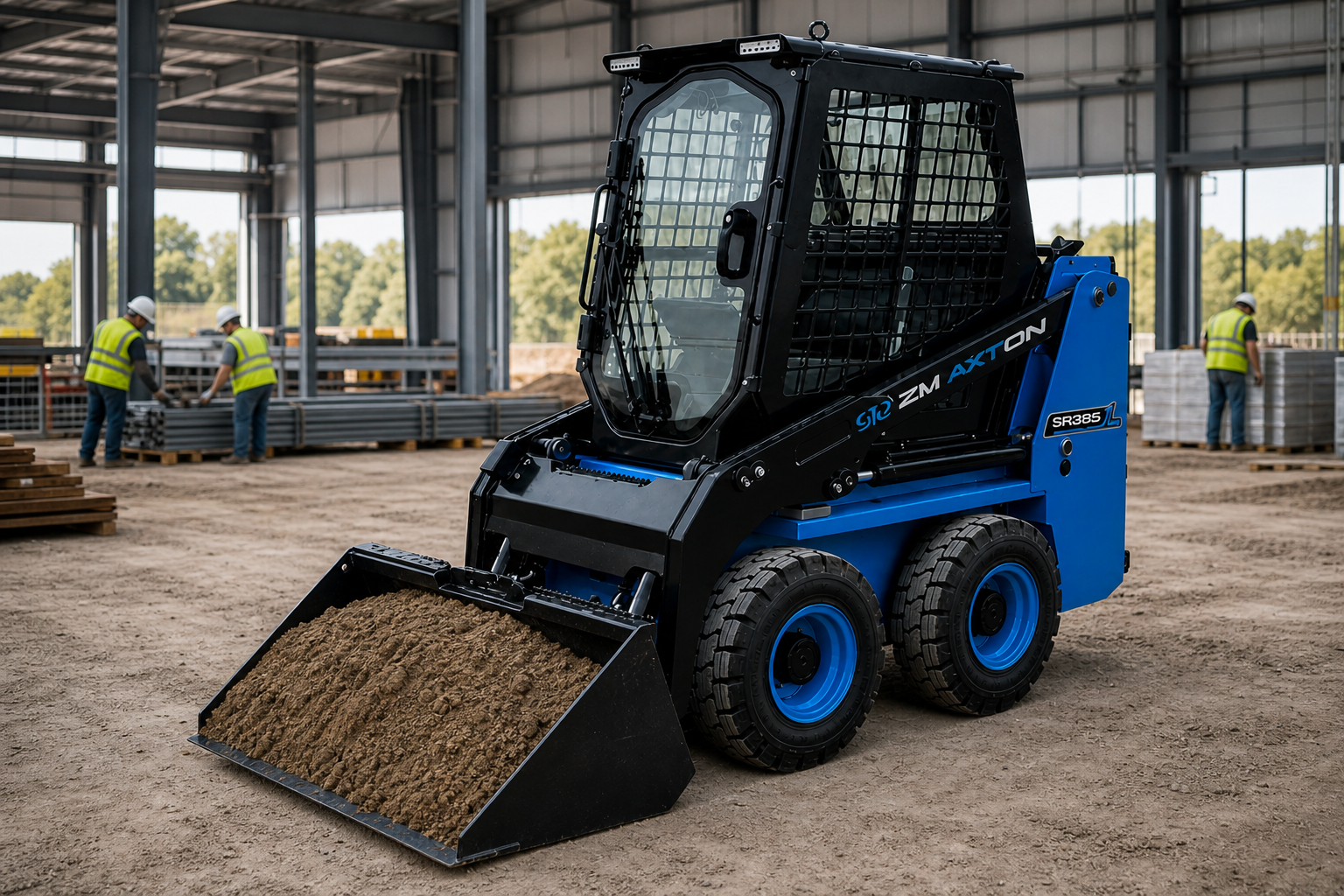

SR385 in Airport projectsAirport Projects

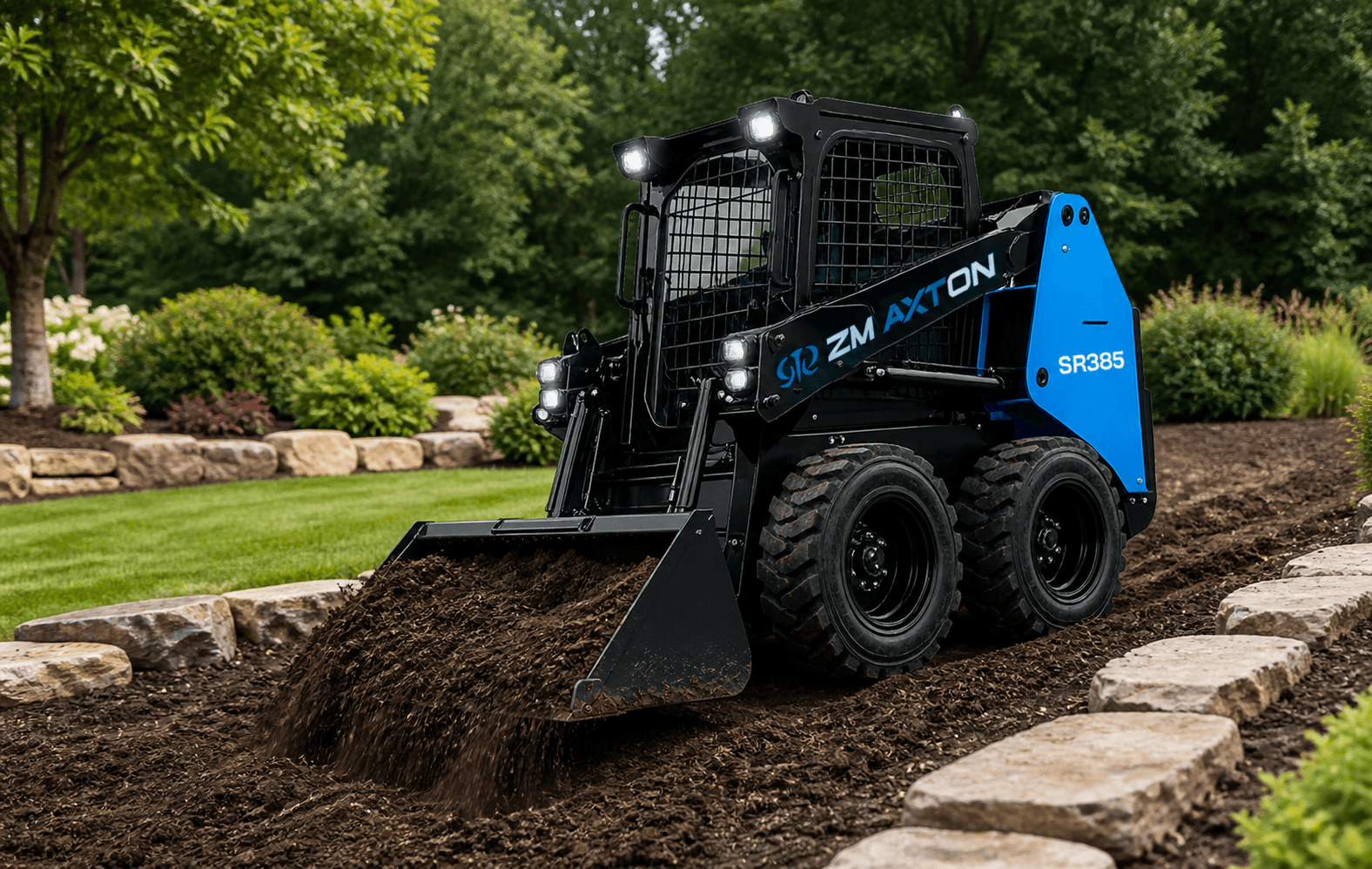

SR385 in Gardening projectsGardening Projects

WHY ELECTRIC

  • Lower daily operating cost compared with diesel equipment
  • No fuel storage, oil changes, or exhaust treatment systems
  • Quiet operation for indoor, residential, and urban jobsites
  • Zero tailpipe emissions for cleaner work environments
  • Fewer moving parts and reduced maintenance downtime

TOTAL COST OF OWNERSHIP

Save more over the life of your machine with lower energy costs, reduced maintenance, and no diesel fuel requirements.

Diesel skid steer ZM AXTON SR385
012345
Time (Years)
UP TO40%SAVINGS

PUT THE SR385 TO WORK ON YOUR NEXT JOBSITE

Schedule a demo and see how electric equipment can reduce operating costs without sacrificing performance.
