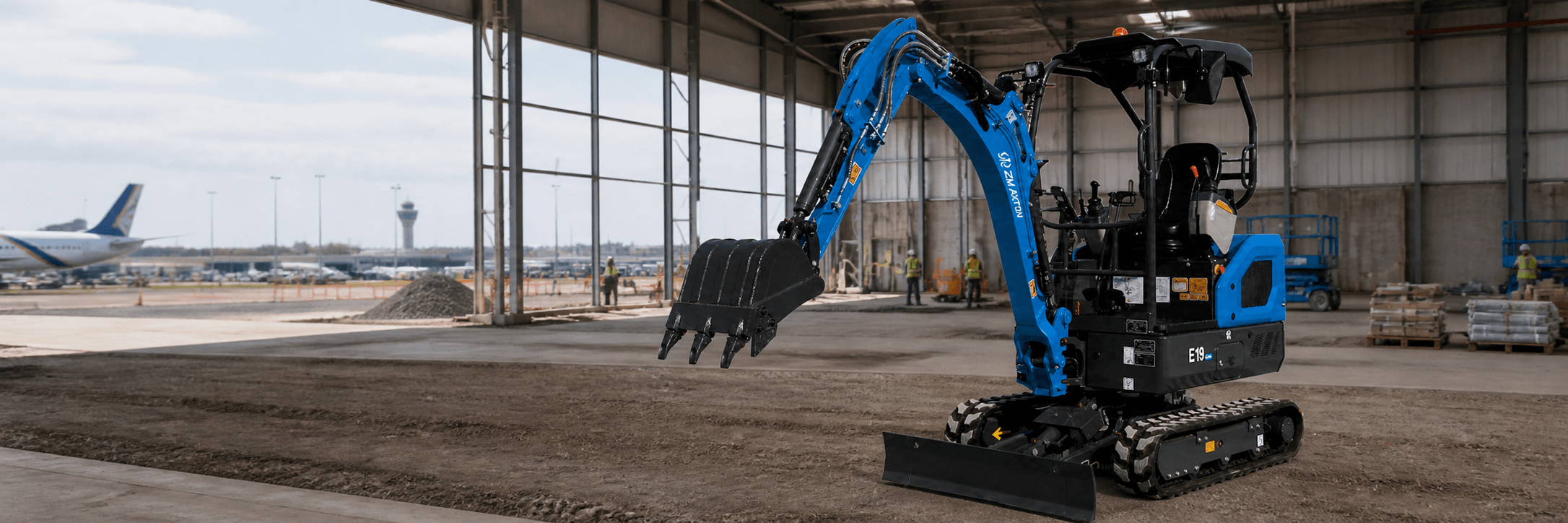

E19

OVERVIEW

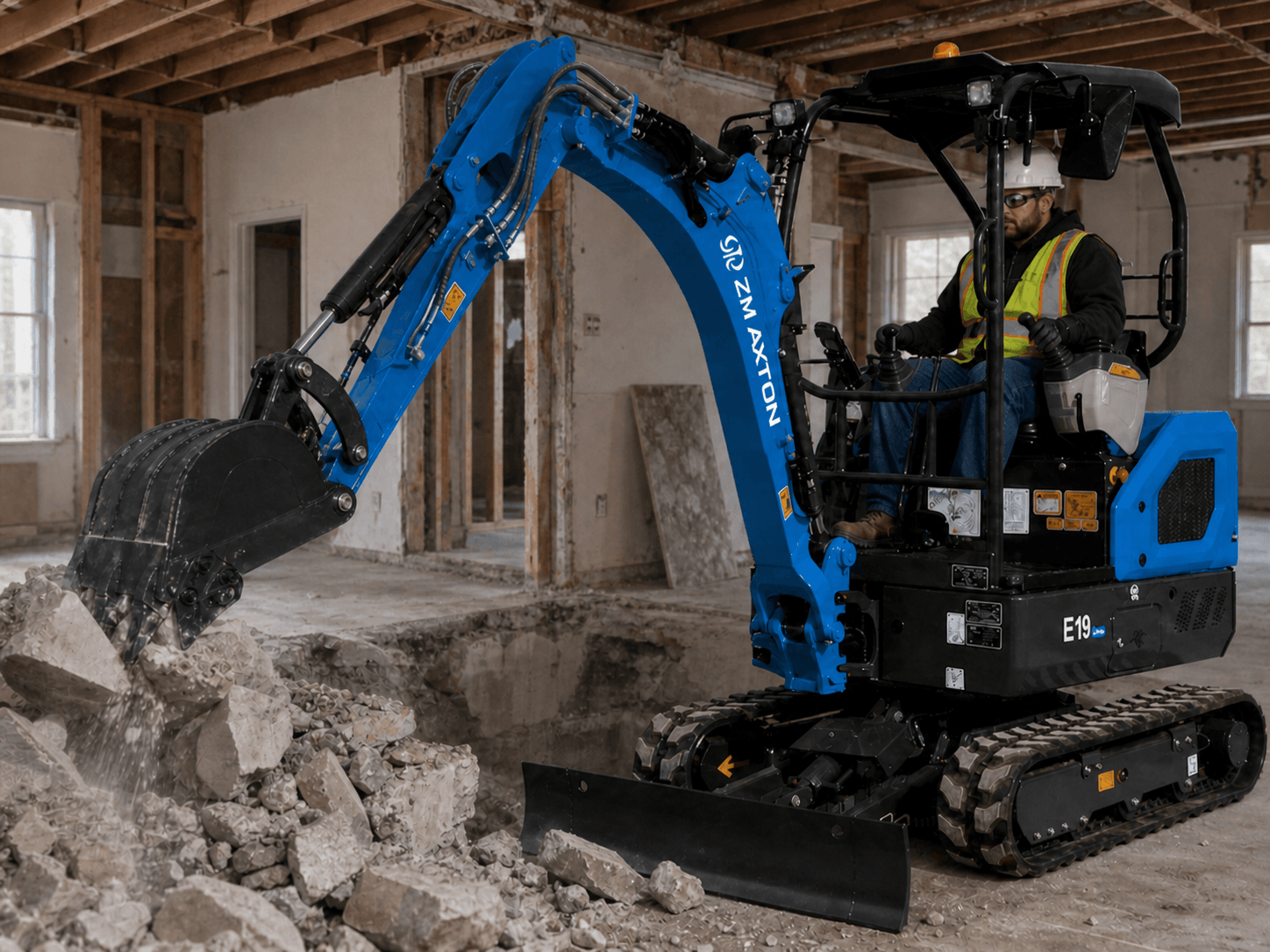

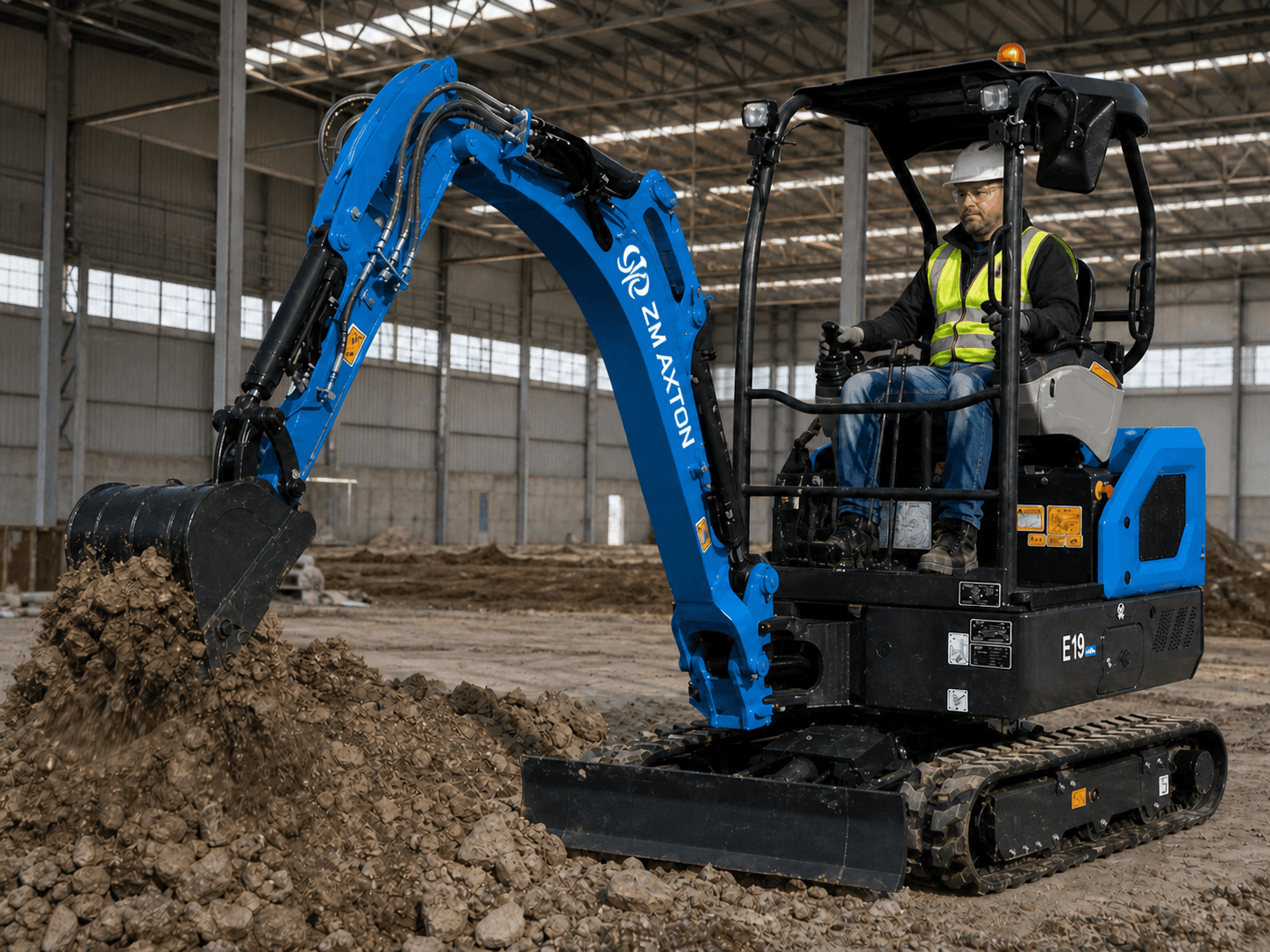

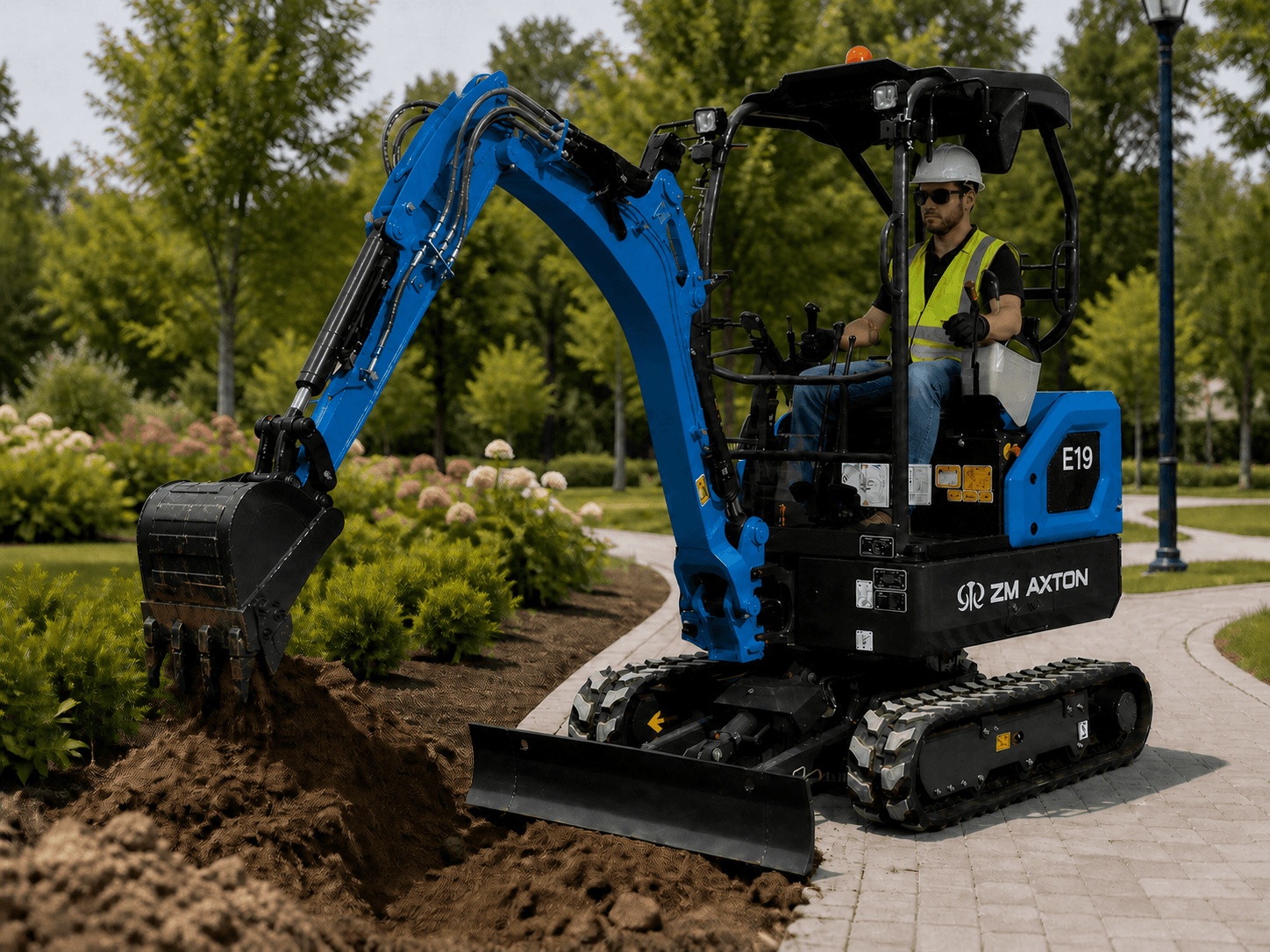

The E19 is a pure-electric mini excavator engineered for jobsites where emissions, noise, and footprint all matter — food and beverage plants, wineries, indoor demolition, landscaping, greenhouses, and any tight-access site where a diesel machine would be impractical or restricted. With a 4,740 lb operating weight, a 1.4 ft³ standard bucket, and a 13.5 ft maximum digging radius, the E19 delivers full-size excavator capability in a compact, low-impact package.

Power comes from a permanent-magnet synchronous motor rated at 16 hp with up to 34 hp peak output and 81 lb·ft of maximum torque. The motor runs on a 51.2 V LFP battery available in 23.5 kWh and 33 kWh configurations, delivering 3.5 to 7 hours of operating time depending on pack size and working conditions. Standard charging completes in 8 or 12 hours; fast charging gets the machine back to work in 2 to 3 hours. Lithium iron phosphate chemistry brings stable performance, long service life, and dependable operation in demanding work environments.

The E19 is built around a variable-width undercarriage that retracts from 51.2 in down to 39 in, letting the machine pass through standard 39-inch doorways, hallways, stairwells, and indoor spaces that block conventional equipment. An extended boom and arm geometry — 71.3 in boom, 46.9 in arm — deliver a 162.2 in maximum digging radius and 101.6 in maximum digging depth, while a dozer blade with 4-inch extension, hydraulic lock, and quick-fold side plates supports a wide range of grading and backfill tasks.

The hydraulic system uses a single variable pump delivering 17.8 gpm at 3,670 psi, with dedicated dual auxiliary pipelines and electrically controlled one-way / two-way switching that doubles attachment changeover speed. Bucket digging force reaches 3,597 lbf SAE, arm digging force 2,248 lbf SAE, and maximum traction force 4,271 lbf. Travel speeds run 1.6 mph low / 2.5 mph high, with a 30° (58%) gradeability rating.

Operator safety is built in. The certified canopy meets OPG, ROPS, and TOPS standards on a four-point support structure for rollover, tip-over, and falling-object protection. A 7-inch LCD instrument display centralizes machine information and real-time fault diagnostics; in-cab emergency stop, dual rearview mirrors, all-LED work lights, and a 360° rotating warning light round out the safety package. With far fewer moving parts than a diesel machine — no engine oil, no fuel system, no exhaust aftertreatment — routine maintenance is reduced and uptime improves over the life of the excavator.
